Honda ST1300 A6
Service Database

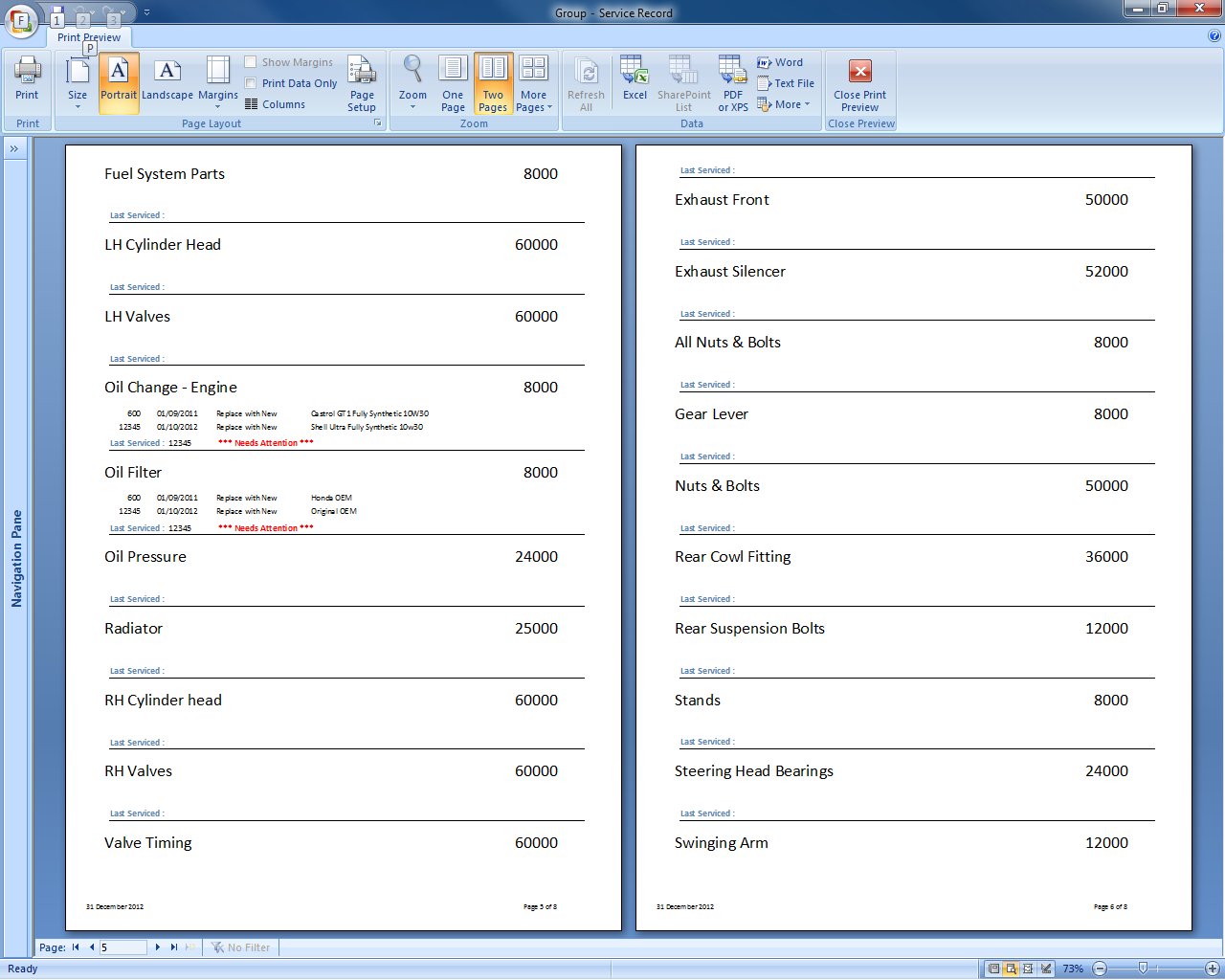

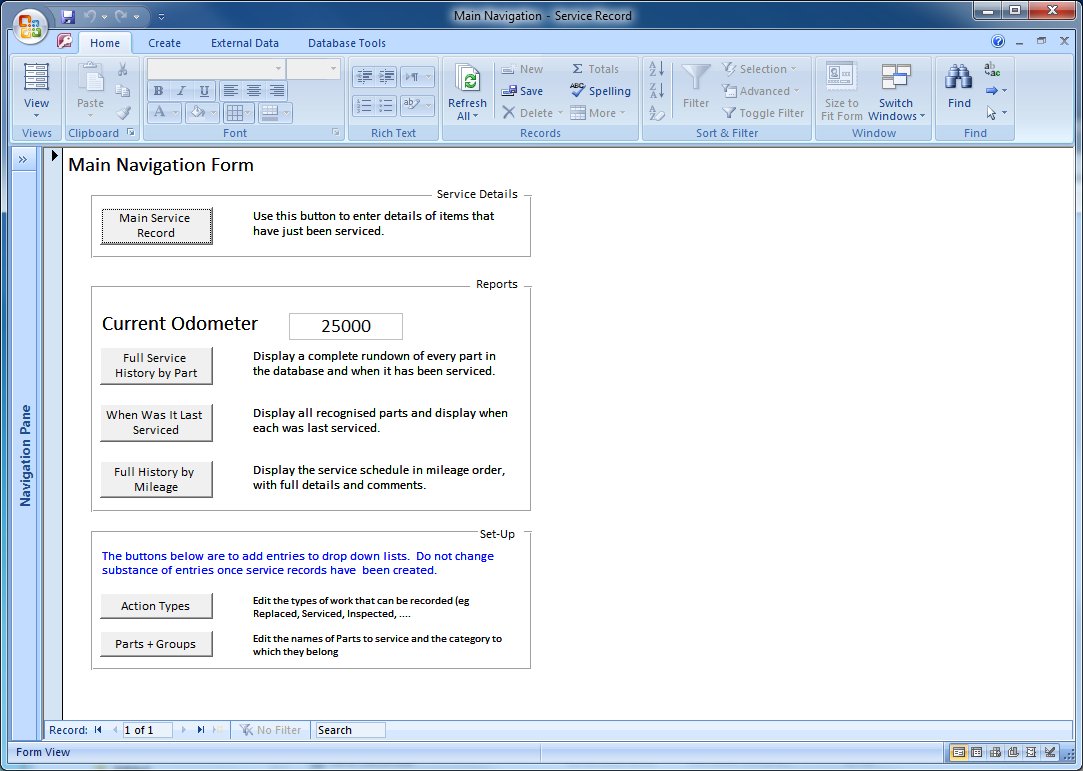

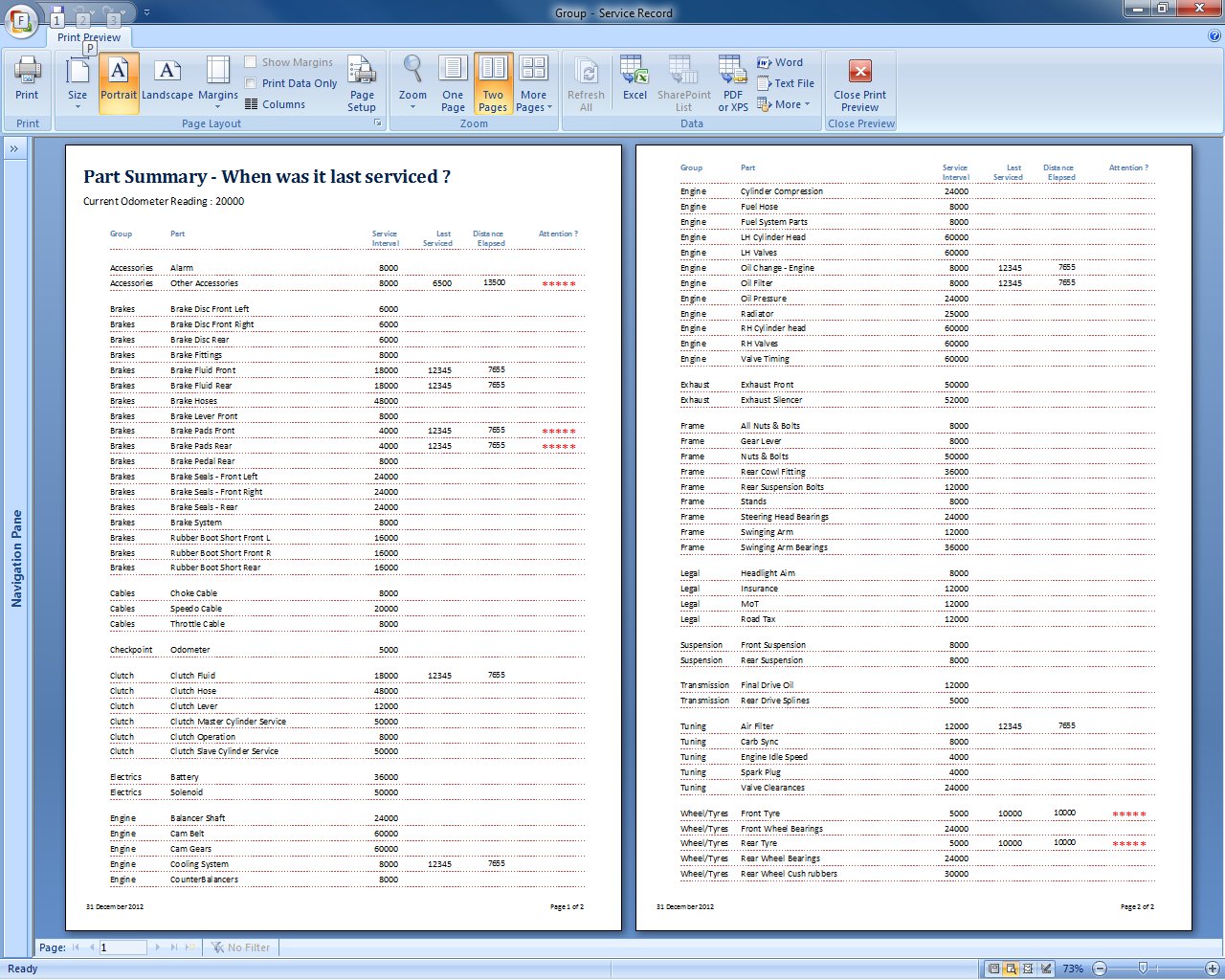

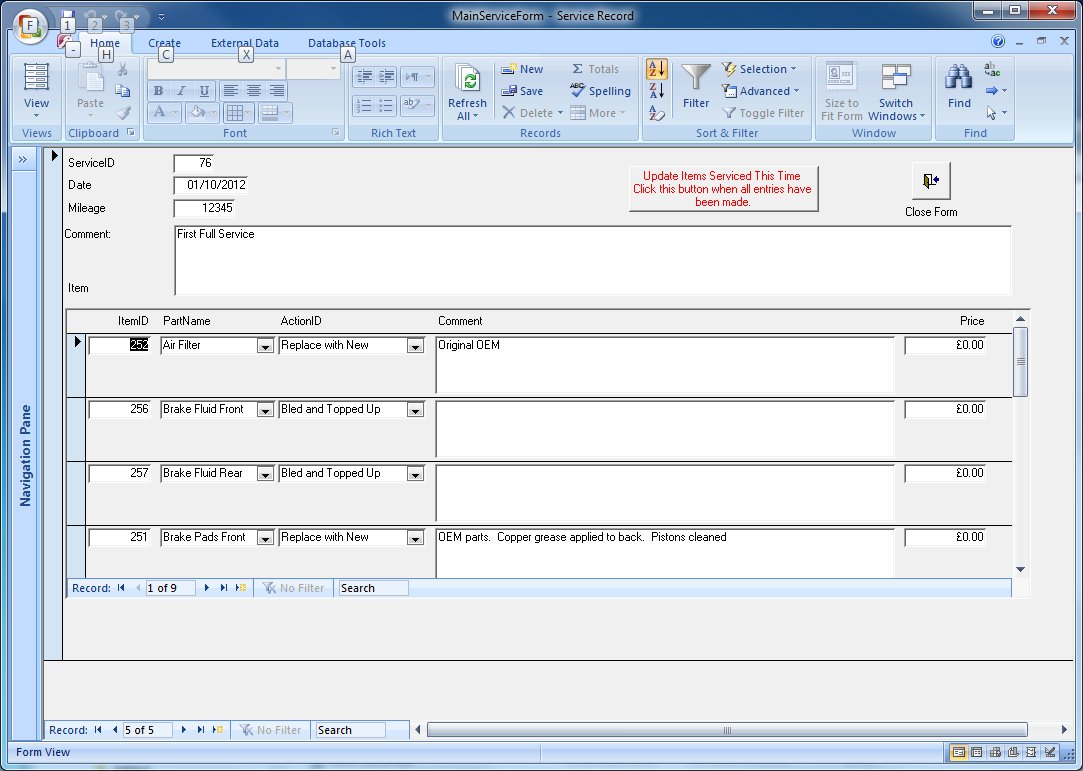

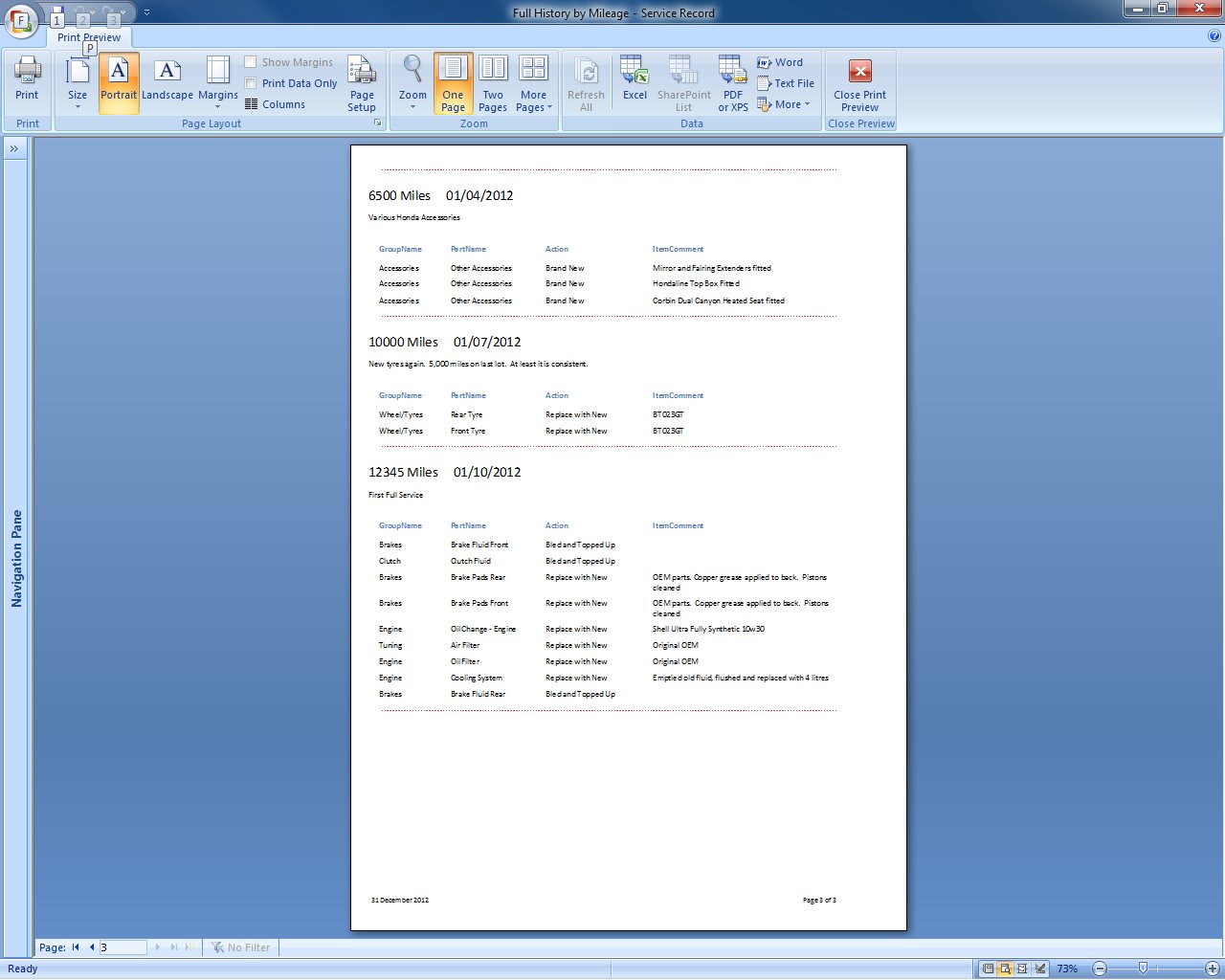

The database can be configured for any car or bike, but as it is, the empty version contains the service schedule for the Honda ST1300. Two versions can be downloaded from the links below - one has got some fictitious data to allow a view of the 3 main reports; one is a 'shell' with no service history recorded. Navigate from the Navigation from, which should pop up on opening the database. If not, find the form labelled 'Main Navigation'. The 3 reports all require the current odometer reading. This is used to identify which components on the bike have hit their service schedule. The remaining two buttons on the form allow easy access to the two tables which can be amended by the user. One table contains groups into which the component parts are classified (eg Wheels, Engine, Brakes ....). The other contains a list of the key serviceable parts, the group to which each part belongs and crucially, its service interval. It also maintains a record of when each part was last serviced. Some screen shots are given below.
The Database was last modified in Microsoft Access 2007. I think it will convert to earlier versions of access, without any trouble, but I do not have earlier versions on which I can test this theory. Download from the links below. |
Service
Fairing
Valves
| ||||||||||
These pages are merely a personal record of maintaining a
Honda ST1300. |
